Система с водно охлаждане Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 ROG Strix with Backplate

Система с водно охлаждане Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 ROG Strix with Backplate

Compatibility list:
RTX 3080
- ASUS ROG Strix GeForce RTX 3080, 10GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3080 OC, 10GB GDDR6X, 2x HDMI, 3x DP

RTX 3080 Ti
- ASUS GeForce RTX 3080 Ti STRIX LC Liquid Cooled, 12GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3080 Ti Gaming, 12GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3080 Ti Gaming OC, 12GB GDDR6X, 2x HDMI, 3x DP

RTX 3090
- ASUS ROG Strix GeForce RTX 3090 OC, 24GB GDDR6X, 2x HDMI, 3x DP
- ASUS ROG Strix GeForce RTX 3090, 24GB GDDR6X, 2x HDMI, 3x DP

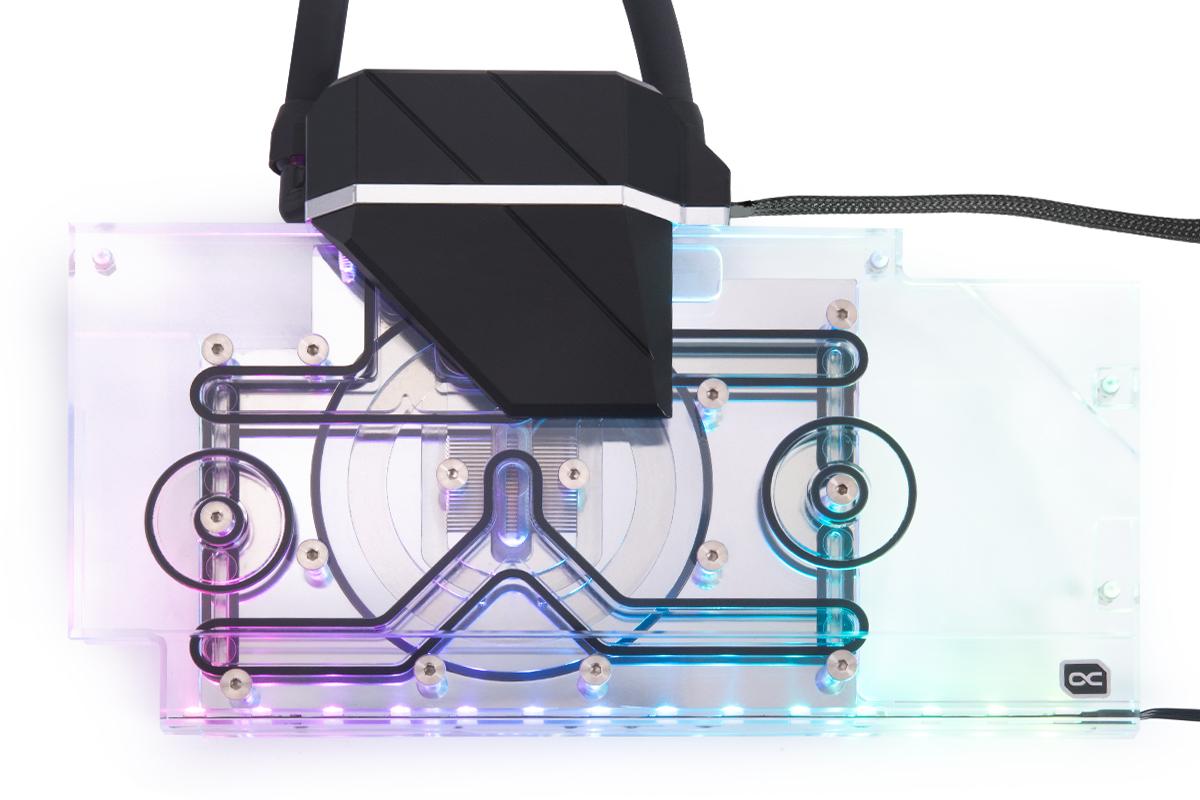

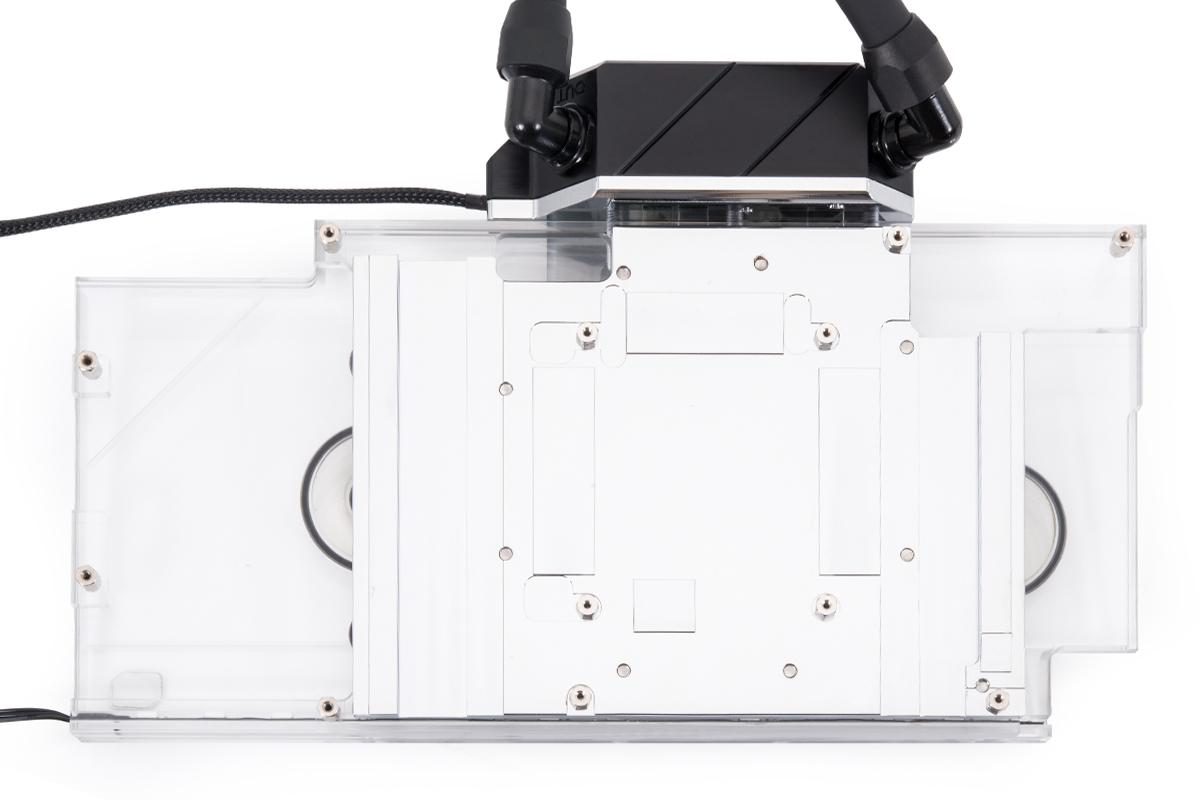

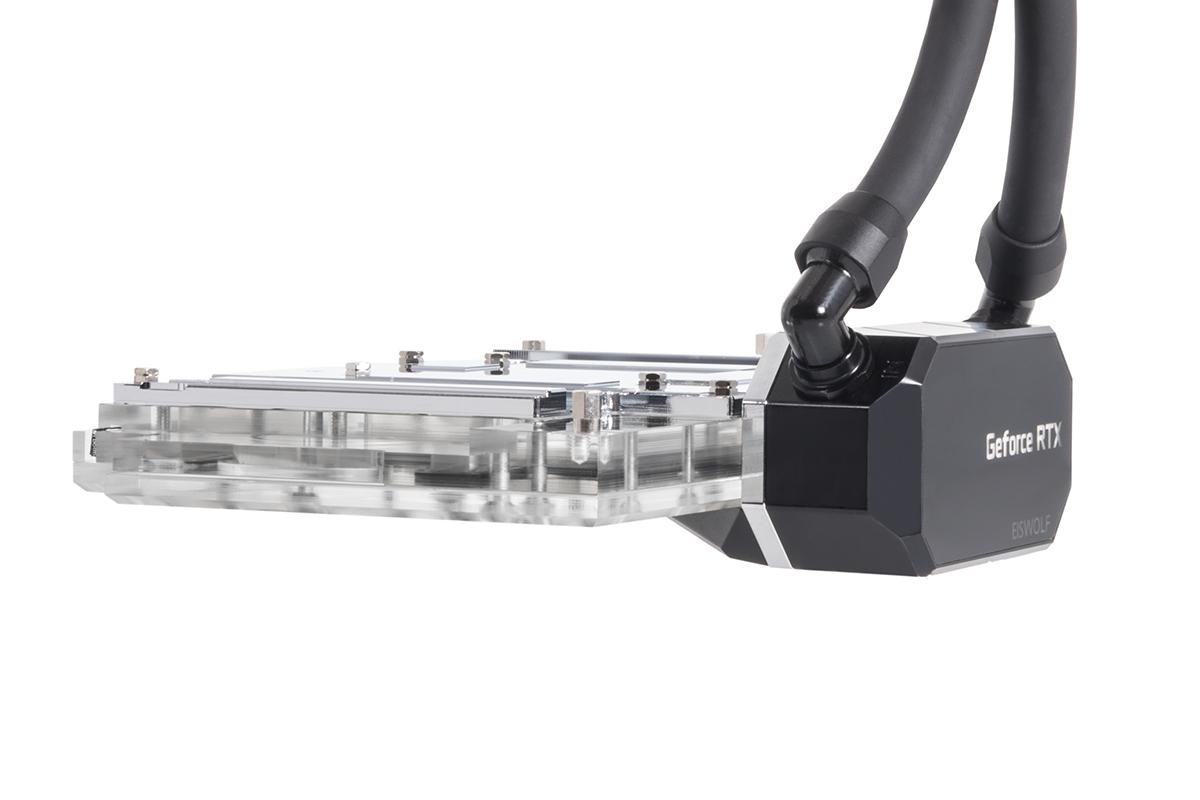

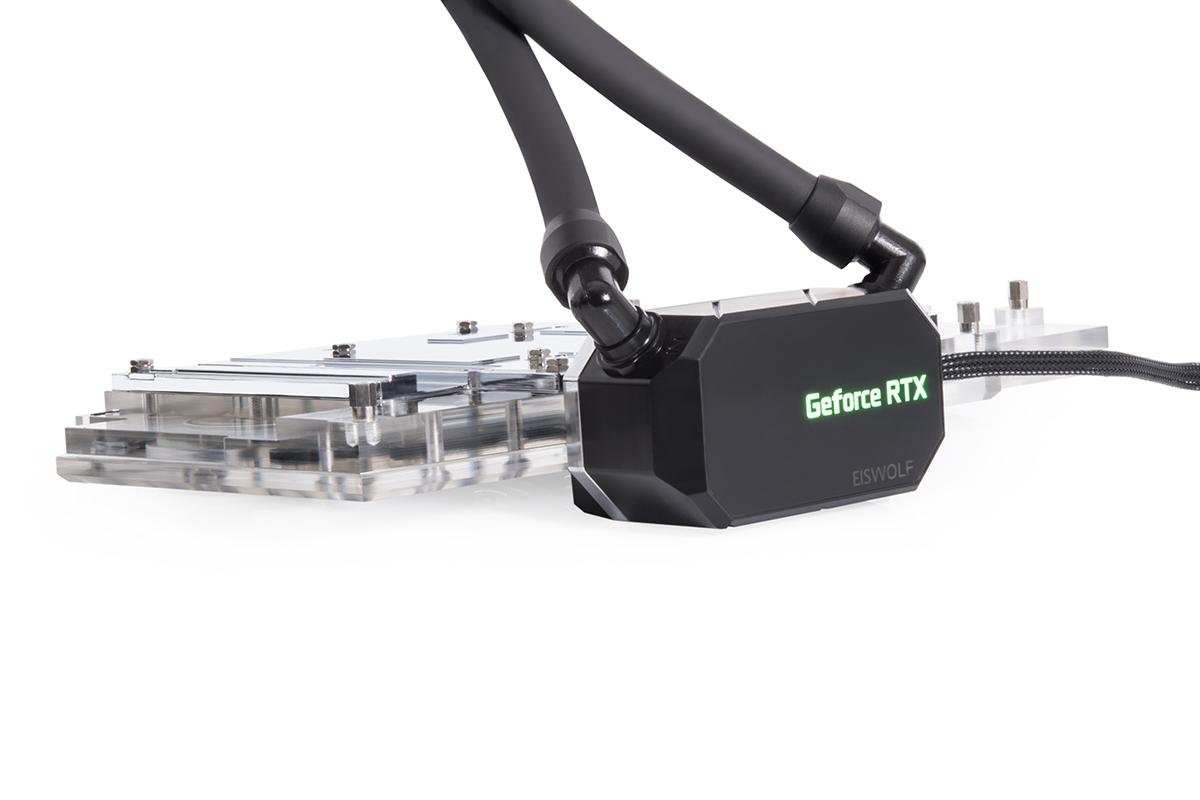

Technical data cooler and pump
L x W x H	162,5 x 266 x 46 mm
Material cooler bottom	Nickel plated copper
Material cooler top	PMMA
Threads	2 x G1/4“
Pump type	DC-LT 2
Pump speed	2600 rpm (+/- 10%)
Head of delivery	0,95 m

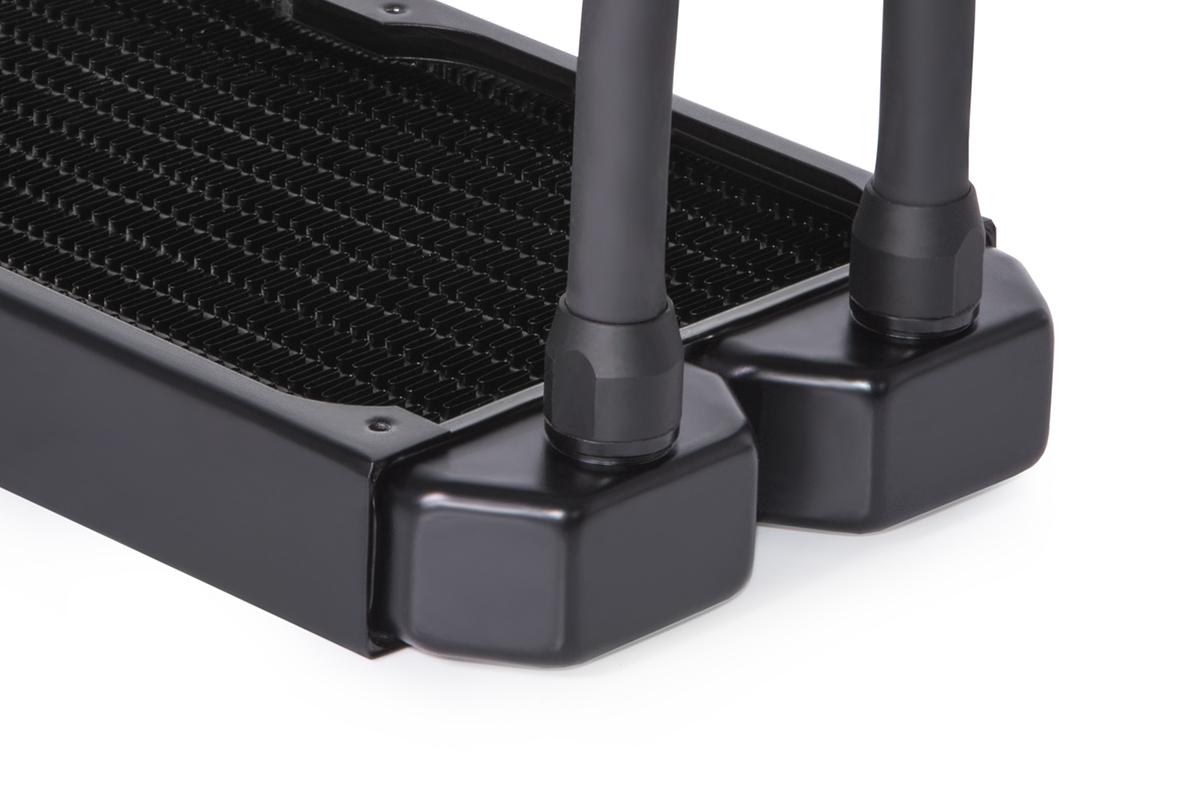

Technical radiator
L x W x H	395 x 124 x 30mm (+/- 3%)
Material fins, chambers & channels	copper
Material threads	brass
Material outer housing	stainless steel
G 1/4“ threads	2 x for tubes (+ 1x Fillport G1/4“)
For fan size	120 mm
Possible fan assembly	3 x one-sided / 6 x both-sided



Technical data fans
Speed	0 - 2500 RPM
Static pressure	3,17 mm H2O
Air flow rate	119,8 m³/h
Fan connector	4-Pin PWM
Connection Digital aRGB	3-Pin JST + 3-Pin 5V
Dimensions	120 x 120 x 25 mm
Max working temperature	60 °C

Note:

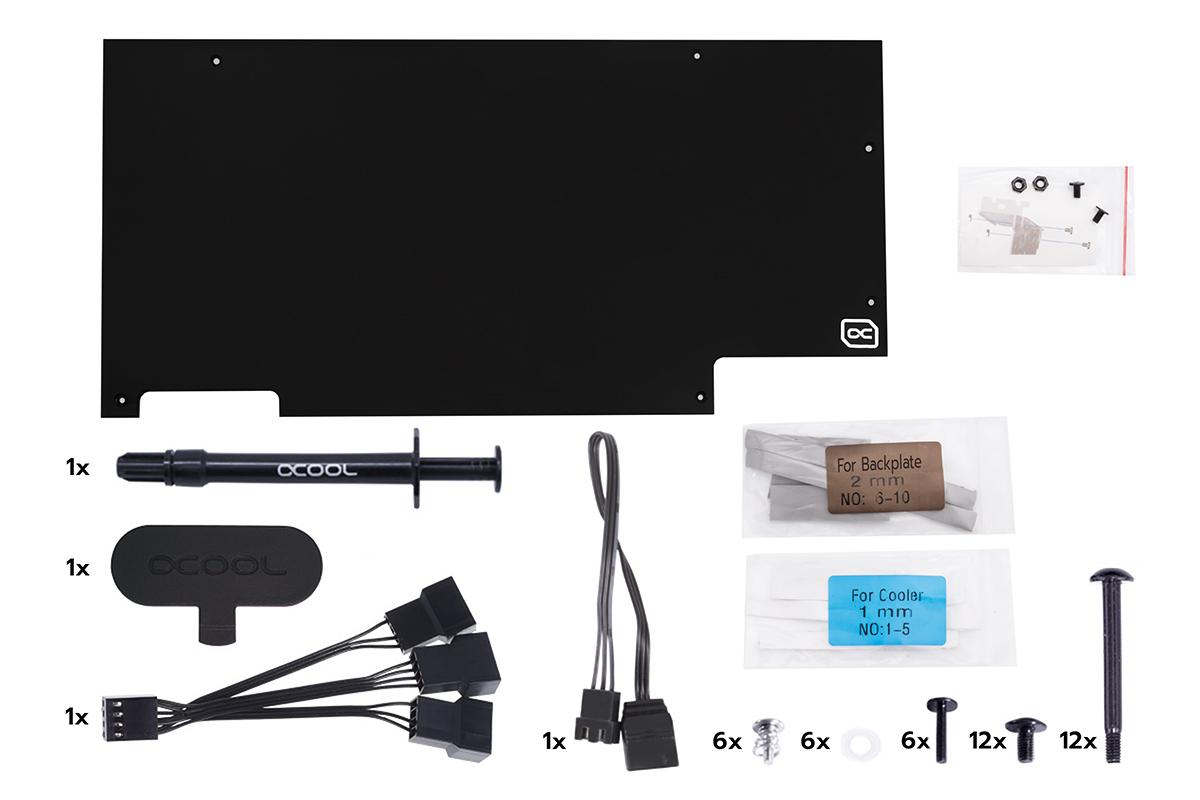

- This cooler includes a backplate
- Attention: The use of the NVLink is not possible with this AIO!
